Casement Windows

A casement window is hinged at the side and cranks outward, so the sash presses against the frame seal when closed. That makes it the tightest-sealing window style available and the best choice for bedrooms and living rooms. Norden Seal builds casements in 100% lead-free uPVC with Low-E glass, installed across Winnipeg, Calgary, and Regina, from $398.

PRESERVES THE HEAT

REDUCE NOISE POLLUTION

SECURING YOUR DREAMS

GENUINELY GREEN

STYLISH LOOK

FEEL THE COMFORT

What Is a Casement Window?

A casement window is hinged on one side and opens outward using a crank handle, like a door turned on its side. Because the sash swings into a compression seal rather than sliding past a brush seal, a casement leaks less air than any other operating window style.

You will also see casements called crank windows, hinged windows, or swing-out windows. They are the same product. A casement hinged at the top instead of the side is an awning window.

Choosing a Casement Window

When a casement is the right choice

You want the tightest air seal available, which matters most on north and west elevations.
You want full-opening ventilation. The entire sash opens, not half of it.
You want an unobstructed view through a single pane with no meeting rail across the middle.
The window needs to meet basement egress requirements in a narrow opening.

When to choose something else

A casement is the wrong window where the sash would swing into a walkway, deck, driveway, or narrow side yard. Use a sliding window in those openings instead. Casements also cost more than a slider of the same size, because the multi-point lock and geared operator are more complex than rollers and a latch.

Screen

Pressure fit, contoured heavy-duty overlap screen. Choosing the right window screen depends on your needs and requirements.

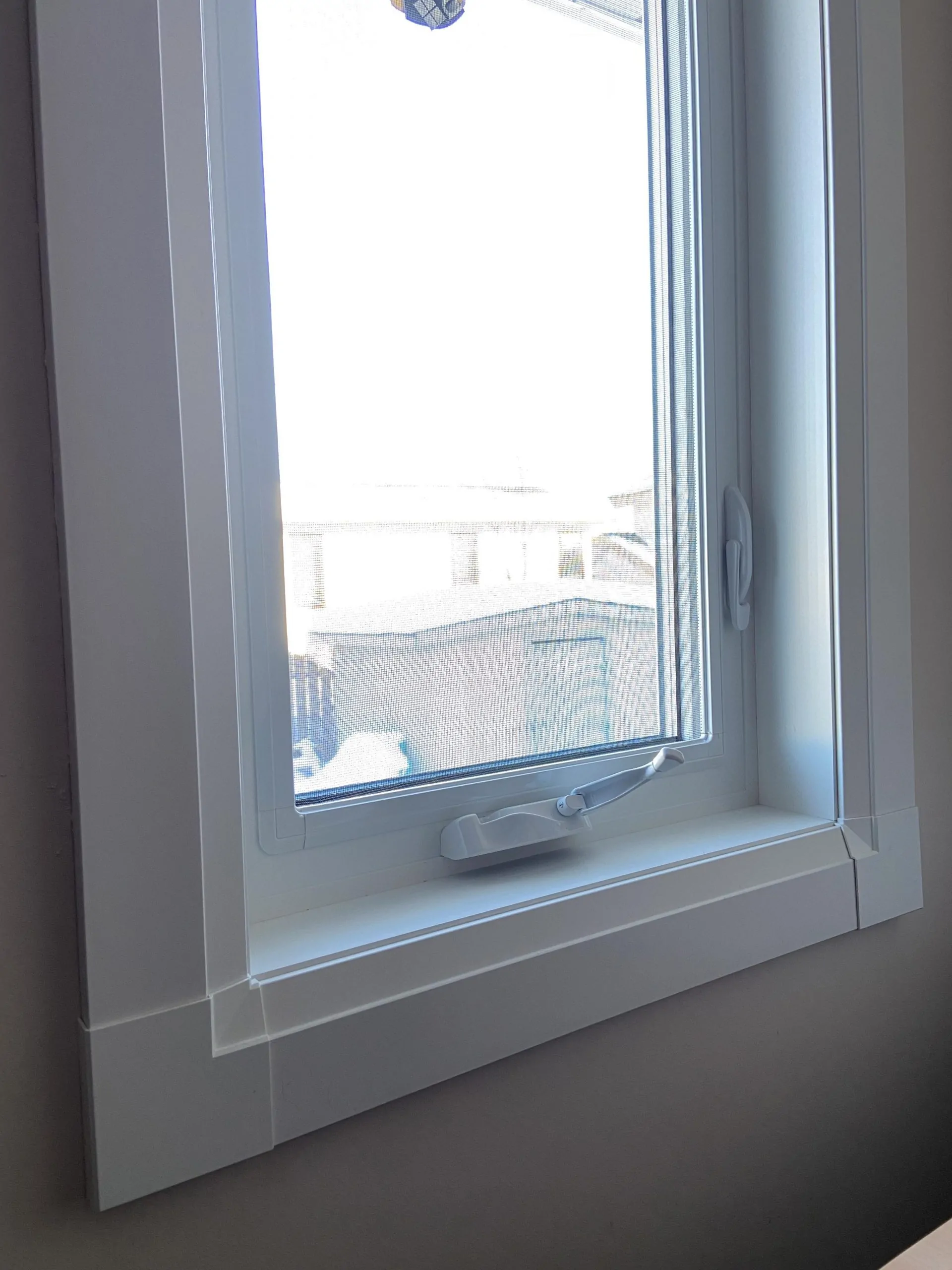

Truth Folding Handles

The handle provides smooth operation with a more contemporary look when nested and allows for easy screen removal without removing the crank.

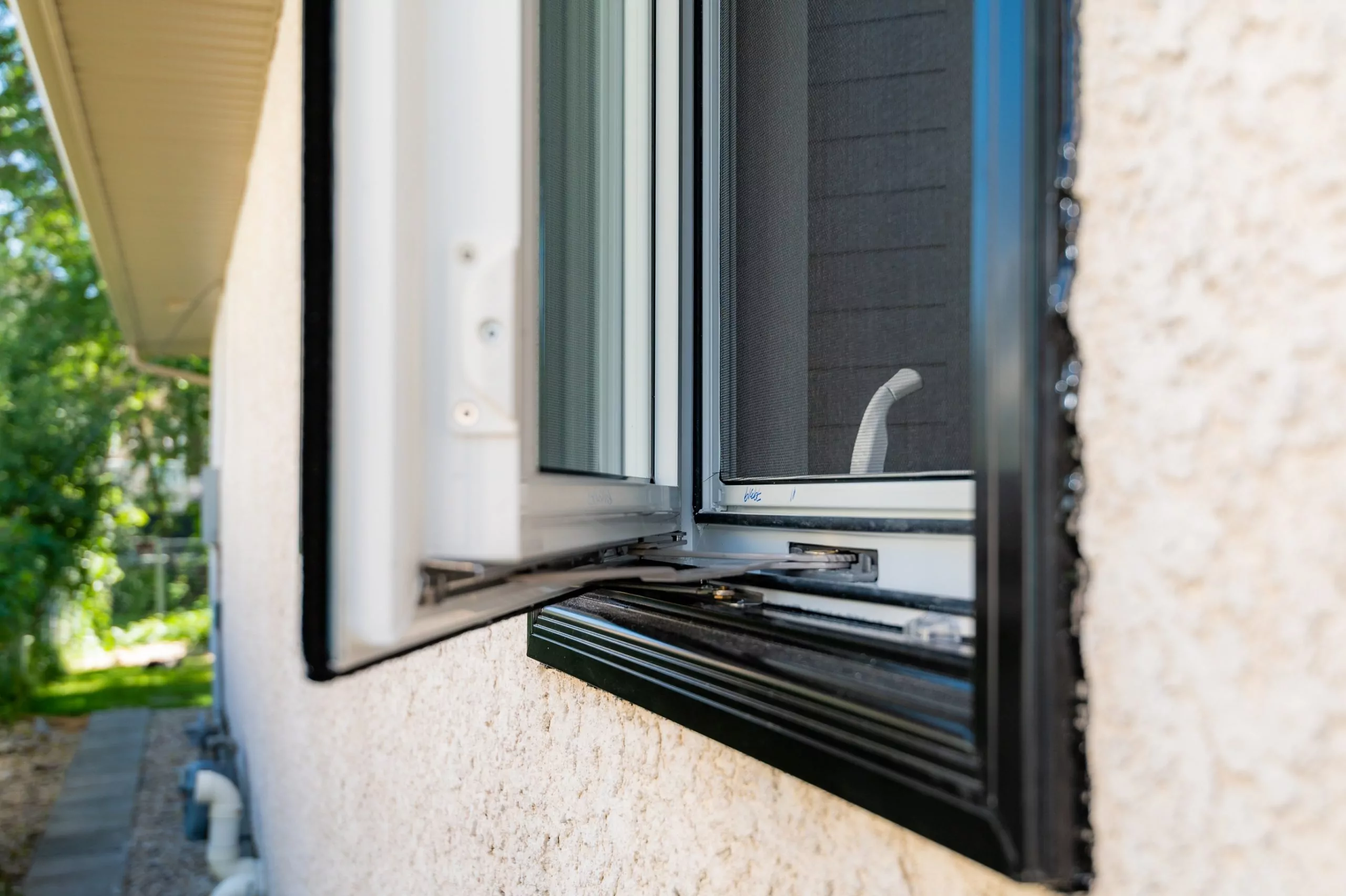

Heavy-Duty Operator

Our casement and awning windows have easy-to-operate stainless steel hinges that offer long-term durability.

Low-E Glass

Low-E Glass has been specially designed to meet the new performance requirements for ENERGY STAR® Canada.

Grills

Norden Seal offers an extensive collection of grill patterns to suit both traditional and modern tastes.

Glass Privacy

Specialty textured and tinted glass provides privacy and can beautify the appearance to allow light to enter your home, without letting anyone look in.

Casement Window Installation Costs

There are many factors that determine Casement window installation cost in Canada, however casement windows prices start from $400 and go up to $1500.

*All the prices given in the table are approximate.

Location	Price range
Kitchen	$413 – $972
Dining Room	$507 – $1309
Living Room	$563 – $1423
Family Room	$563 – $1423

Location	Price range
Bathroom	$398 – $856
Bedroom	$481 – $1271
Master Bedroom	$517 – $1392
Ensuite	$342 – $891

Location	Price range
Office	$418 – $1091
Loft	$391 – $796
Hallway	$572 – $1038
Laundry	$398 – $856

Location	Price range
Kitchen	$793 – $1678
Dining Room	$547 – $1936
Living Room	$1174 – $3099
Family Room	$1061 – $2619

Location	Price range
Bathroom	$792 – $1306
Bedroom	$703 – $2803
Master Bedroom	$815 – $3057
Ensuite	$641 – $1294

Location	Price range
Office	$871 – $2052
Loft	$950 – $1850
Staircase	$901 – $1854
Laundry	$802 – $1050

Casement Window Prices by Custom Size

There are many factors that determine Casement window prices in Canada by custom size. you may be eligible for the Canada Greener Homes Loan, which could help save on your energy bills.

*All the prices given in the table are approximate.

Dimension	Price range
24 x 36	$680 – $1350
28 x 48	$920 – $1450
32 x 60	$1041 – $1950
34 x 46	$983 – $1652
36 x 52	$1070 – $1946
30 x 38	$789 – $1398

Dimension	Price range
48 x 36	$1050 – $1850
56 x 48	$1515 – $2311
64 x 60	$2038 – $3041
68 x 46	$1747 – $2891
72 x 52	$2010 – $3250
60 x 38	$1374 – $2201

Maximum Size Limitation

All Canadian window companies have a certain size limit for each window they can produce. The chart below demonstrates the maximum standard window sizes for common window types that our production line manufactures. Both maximum sizes can’t be used at the same time. Important is that the maximum square footage is maintained within the parameters given below.

Window	Glass	Min Width	Min Height	Max Width	Max Height	Max Sq. Ft.
Casement	Double Glass	15.5″	18″	38″	72″	18 sq. ft.
Casement	Triple Glass	15.5″	18″	36″	72″	14.5 sq.ft.

Casement Window Configurations and Styles

Casements are built in five common configurations. The right one depends on the opening width and whether the window also needs to serve as an emergency exit.

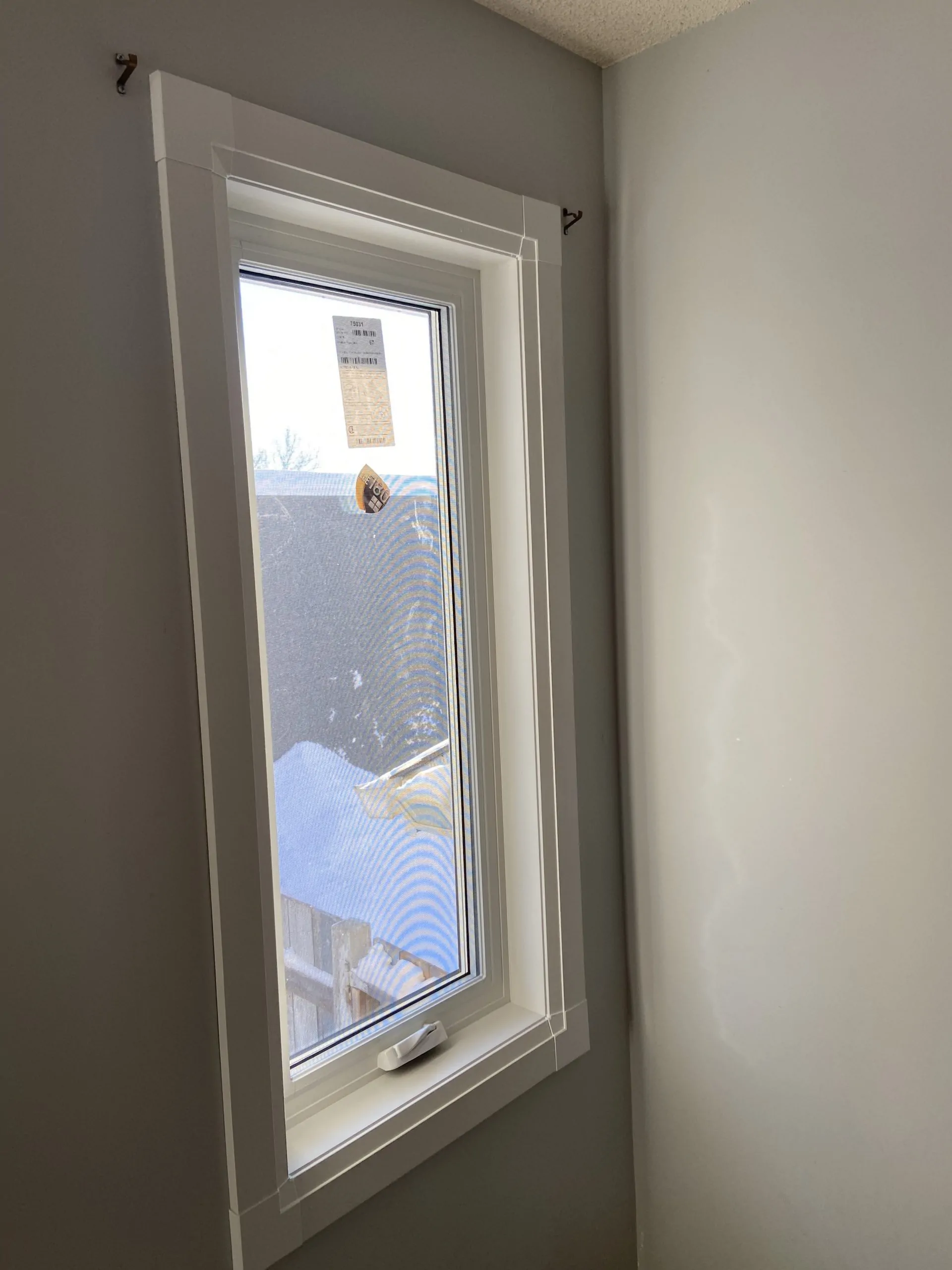

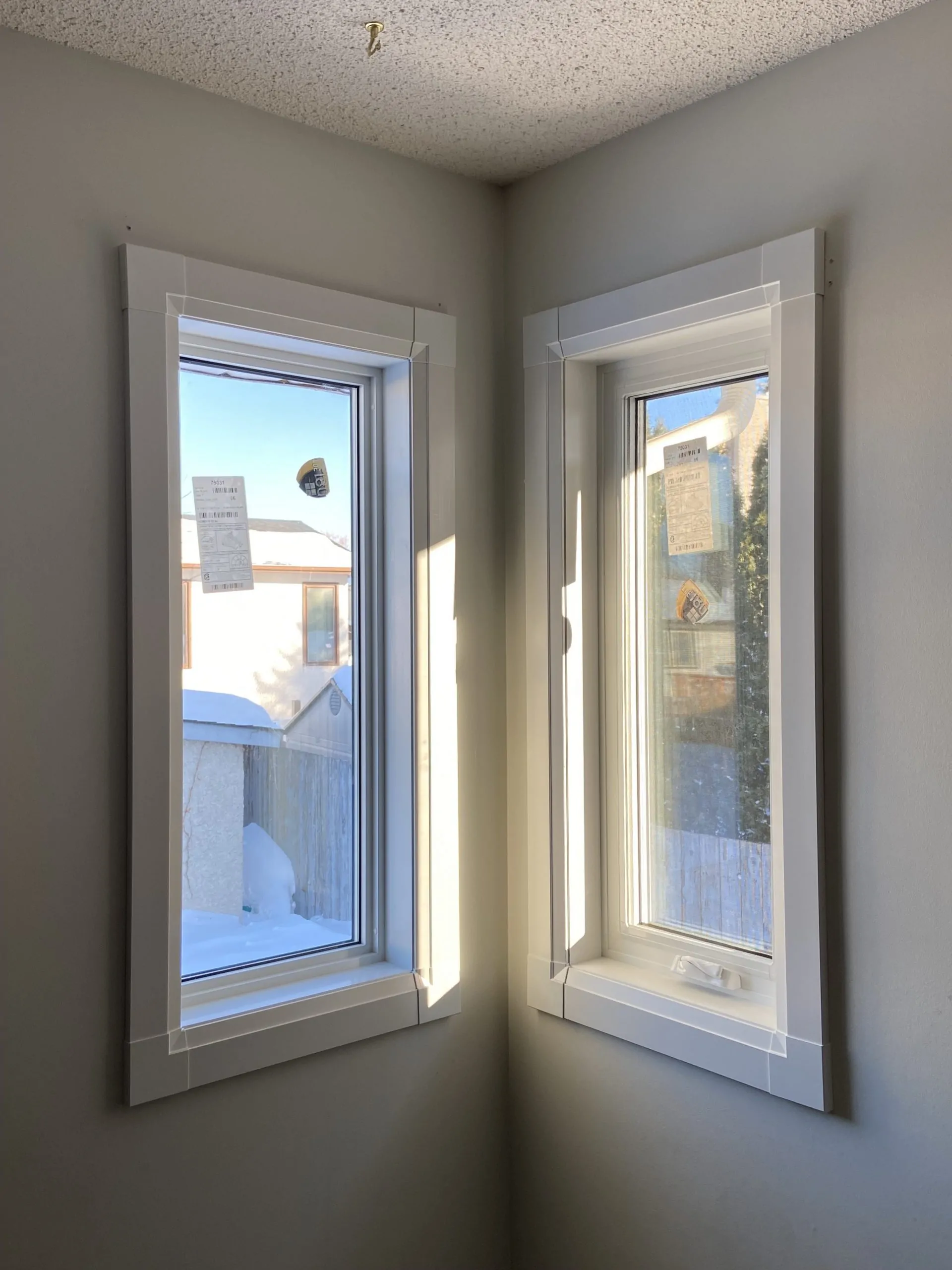

Single casement

One hinged sash in one frame. The standard bedroom and bathroom unit.

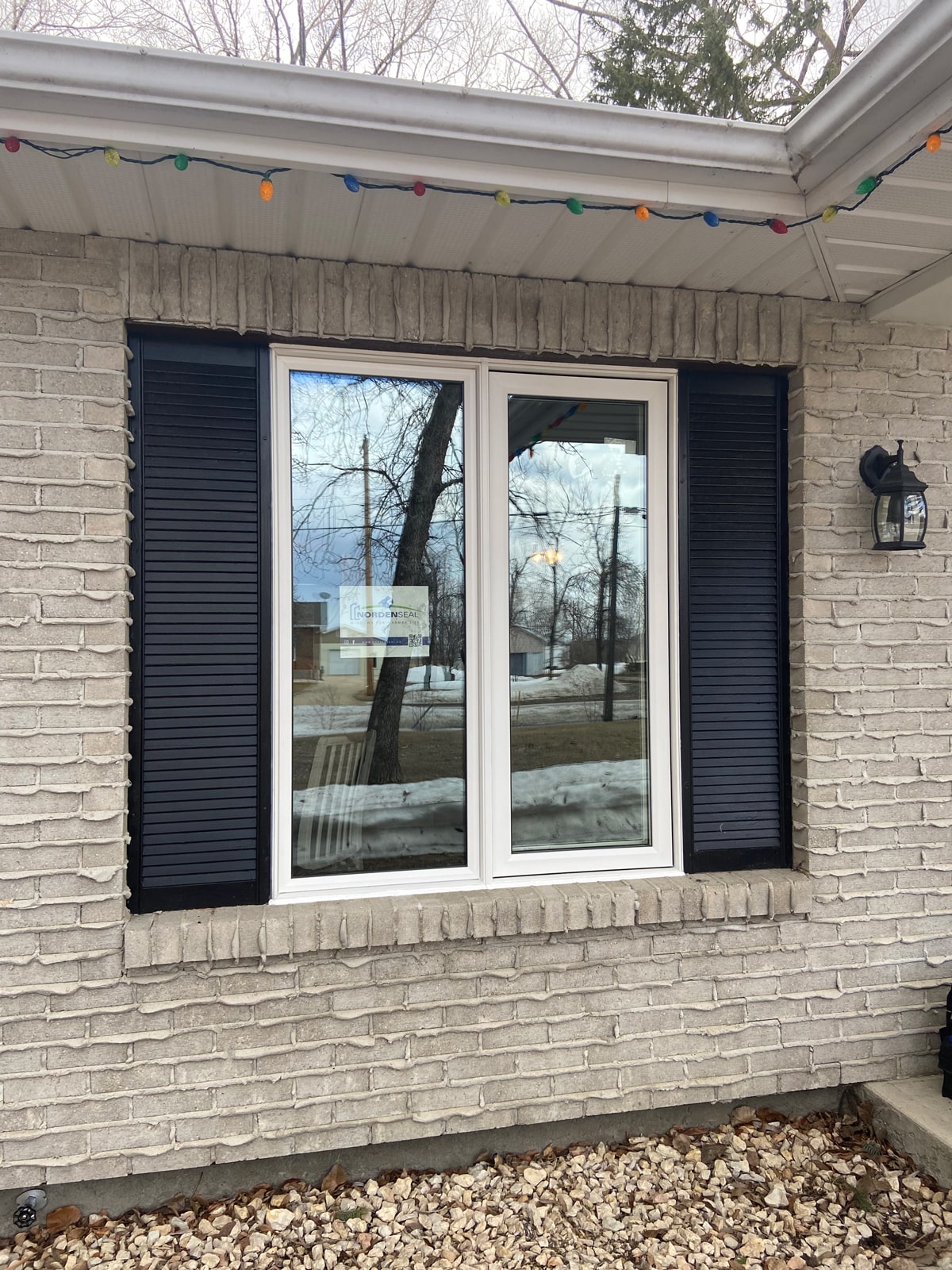

Double casement

Two hinged sashes side by side in one frame, each with its own crank. This doubles the opening width without making a single sash too wide and heavy for the hinges.

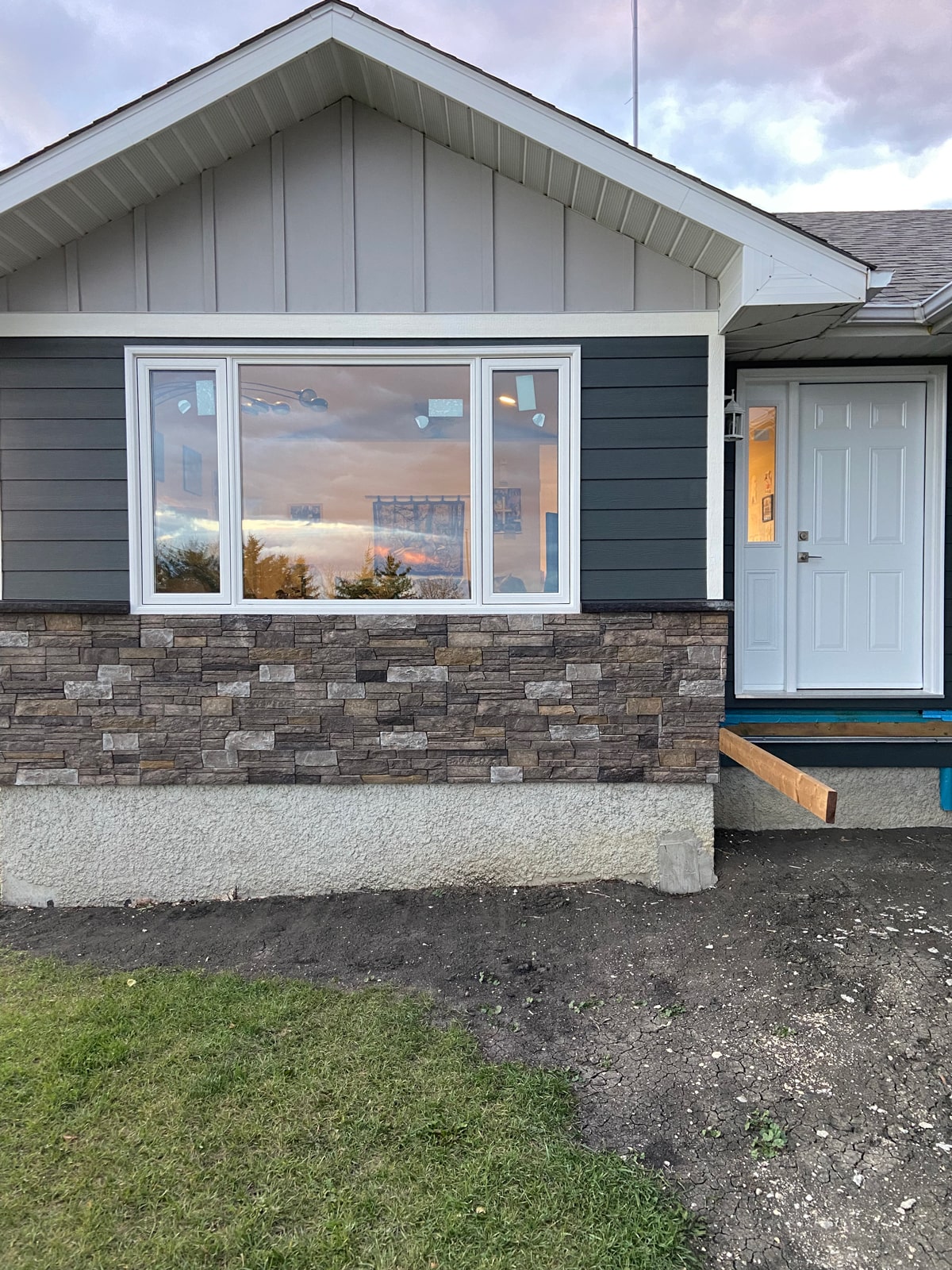

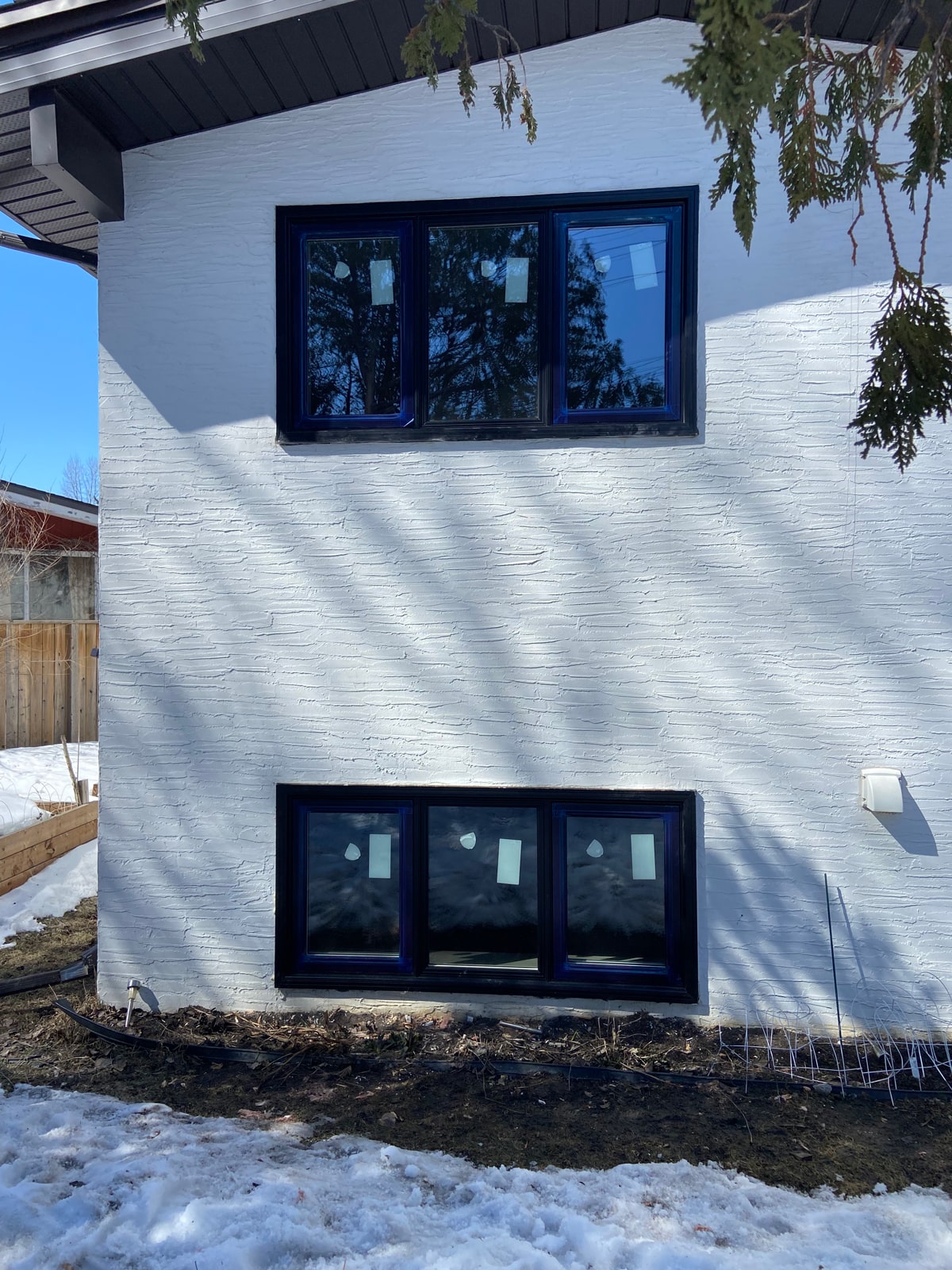

Casement and picture combination

A fixed centre pane with an operating casement on one or both sides. This is the most common living-room configuration: maximum glass area, with ventilation only where you actually need it.

French casement

Two sashes that meet in the middle with no centre post, so the opening is completely clear when both are open. This is the configuration to specify when the window doubles as egress.

Fixed casement

A casement-profile frame with no operating hardware, used to match sightlines beside operating units so an elevation reads as one consistent set of windows.

Hinge direction is specified per unit at no extra cost. The convention is to hinge away from the prevailing wind so an open sash is not caught and strained.

Casement vs Other Window Styles

Casement, awning, slider, and hung windows all ventilate a room, but they seal and open differently. Here is how a casement compares against each one.

Casement vs awning

Both crank outward and both seal by compression, so the difference is orientation. A casement hinges at the side and the whole sash opens, which makes it the better egress window and the better performer on a cold elevation. An awning hinges at the top and can stay open in the rain, which a casement cannot. Read the full awning vs casement comparison.

Casement vs slider

A casement seals tightest because the sash compresses into a gasket, and the entire opening clears when it is open. A slider seals only against brush weatherstripping and never opens more than half its width, but it needs no exterior swing clearance and costs less. Choose the slider where a swinging sash would block a walkway or deck. See casement vs sliding windows and which costs less.

Casement vs double hung

A double hung slides vertically, opens to half its height, and suits traditional and heritage elevations. A casement out-performs it on air sealing and ventilation, and meets egress in a much smaller frame. Pick the hung window for the look and for walkway clearance, the casement for performance.

The short version

Choose casement for sealing and ventilation, awning for rain, slider for tight exterior clearance, and hung for a traditional look. You can also compare all window styles side by side.

Casements are the most-specified style on our jobs in both provinces. See pricing, lead times and rebates for window replacement in Winnipeg or window replacement in Calgary.

Warm Up With
Hot Deals This Season

apply now

50%

OFF

Casement Window FAQs

Norden Seal casement windows run from $398 for a small bathroom unit to $1,423 for a large living-room window, installed. A standard bedroom casement falls between $481 and $1,271. A casement and picture combination in a living room ranges from $1,174 to $3,099. Triple pane adds roughly 10 to 15 percent over double pane on the same unit.

Norden Seal casements go up to 38 inches wide by 72 inches tall in double glass, with a maximum area of 18 square feet. In triple glass the maximum width drops to 36 inches and the area limit to 14.5 square feet, because the extra pane adds weight the hinges have to carry. Minimum size is 15.5 inches wide by 18 inches tall.

Yes, and the difference is in the seal rather than the glass. A casement sash compresses against the frame gasket when the crank draws it shut. A sliding window runs on brush weatherstripping that has to stay loose enough for the sash to move, so it can never seal as tightly. With identical glass packages, a casement tests lower for air leakage every time.

Yes, and casements are the most common egress choice in narrow basement openings. Because the whole sash swings clear of the opening, a casement delivers the required 0.35 square metre clear opening in a smaller frame than a slider needs. A French casement, with no centre post, clears even more. Our egress window page sets out the full code requirements.

Hinge the window so the open sash faces away from the prevailing wind, which on the Prairies generally means hinging on the north or west side. Also check what sits outside: avoid swinging a sash into a walkway, deck railing, or gas meter. Norden Seal specifies hinge direction per unit at no extra cost.

Usually the operator arm track is dry or full of grit. Open the window, wipe the track clean, and apply a dry silicone lubricant rather than oil, which attracts dust and makes it worse. If the crank turns but the sash does not move, the operator gearbox has stripped and needs replacing. That is a low-cost part on most units and does not mean replacing the window.

The Norden Seal Difference

Know Exactly
What You Are Buying.

New windows and doors are a decision you live with for decades, so it is worth settling three things before you sign with anyone: what protects your investment, who carries out the work, and how well it suits your home and this climate. Here is where we stand on all three.

Strong Warranty &
Continued Support

White PVC frames and sashes, sealed units and hardware are covered for 25 years. Coloured PVC windows are covered for 15 years.

The coverage is non-prorated, so year twenty is protected on the same terms as year one, and it transfers to the next owner when the stated registration and transfer conditions are met. If something needs attention later, submit a service request and our team reviews it directly. See the full warranty for exclusions and labour terms.

25 Years, White PVC
15 Years, Coloured PVC
Non-Prorated
Transferable

Labour to replace defective parts is covered for the first two years. Registration and transfer conditions apply.

Professional & Reliable
In-House Installation Teams

Your installation is carried out by Norden Seal's own in-house team. From the first measurement through to the final walkthrough, the team takes careful measurements, explains the agreed scope before work starts and completes the installation with attention to fit, finish and the rest of your home.

The crews are Manitobans working out of our own shop, so the person measuring your opening has already seen what this winter does to a window. You have one team to contact before, during and after the work, and one team accountable for the result.

In-House Crews
Manitoba Installers
One Point of Contact

Personalized Solutions &
Individual Approach to Home

No two openings are the same, so nothing here is sold from a standard list. A north-facing bedroom, a bay that carries a window seat and a basement that has to meet egress each need a different unit, and we specify them that way, designed for Manitoba rather than for a milder climate.

Every rough opening is measured in three places and checked for square before anything is ordered, because Red River clay moves and a house that has settled is rarely still square. You can also see the numbers for your own window type and city before anyone visits, using the published price ranges and the calculator.

Measured Per Opening
Built for Manitoba
Prices Published Online

Why our casement windows

Stainless steel hinges, and a sash that never outgrows them

A casement hangs its whole sash from one side, so the hinges and crank carry the full weight every time it opens. That is the first place a casement wears. Ours use stainless steel hinges, a geared heavy-duty operator and a multi-point lock, and we cap the size to match: 38 inches wide in double glass, 36 in triple, with the area limit dropping from 18 to 14.5 square feet when the third pane adds weight.
